504 Gateway Timeout | Causes and How to Fix It

A 504 Gateway Timeout error occurs when a server acting as a gateway or proxy doesn’t receive a timely response from an upstream server. Unlike 502 (invalid response) or 503 (server unavailable), 504 specifically indicates the upstream server was too slow to respond. Understanding how it fits within the broader HTTP status codes helps teams triage faster—504 always means a timeout at the proxy layer, not a crash.

What 504 Gateway Timeout Means

The HTTP Definition

Per RFC 9110, 504 indicates “the server, while acting as a gateway or proxy, did not receive a timely response from an upstream server it needed to access in order to complete the request.”

Key characteristics:

• The proxy/gateway successfully connected to upstream
• The upstream didn’t respond within the timeout period
• The connection was established but no data arrived
• This is a timeout at the proxy level, not the client level

504 vs 502 vs 503

Common Causes of 504 Gateway Timeout

1. Slow Database Queries

The application waits for a slow query:

-- Query taking longer than proxy timeout
SELECT * FROM large_table WHERE complex_conditions;
-- Execution time: 120 seconds
-- Proxy timeout: 60 seconds

2. External API Calls

Waiting for slow third-party services:

// External API taking too long
const response = await fetch('https://slow-api.example.com/data');
// Response time: 90 seconds
// Proxy timeout: 30 seconds

3. Heavy Computation

CPU-intensive processing blocking the event loop:

// Synchronous heavy computation
const result = calculateLargeDataset(data);
// Takes 45 seconds

4. Proxy Timeout Too Short

The timeout configuration doesn’t match workload requirements:

# Default timeout may be too short
proxy_read_timeout 60s;  # Default in many configurations

5. Network Issues

Packet loss or high latency between proxy and upstream:

• Congested network links
• Cross-region calls
• VPN or tunnel overhead

6. Resource Starvation

The upstream server is overwhelmed:

• CPU at 100% for extended periods
• Memory pressure causing swapping
• Disk I/O saturation

Troubleshooting 504 Errors

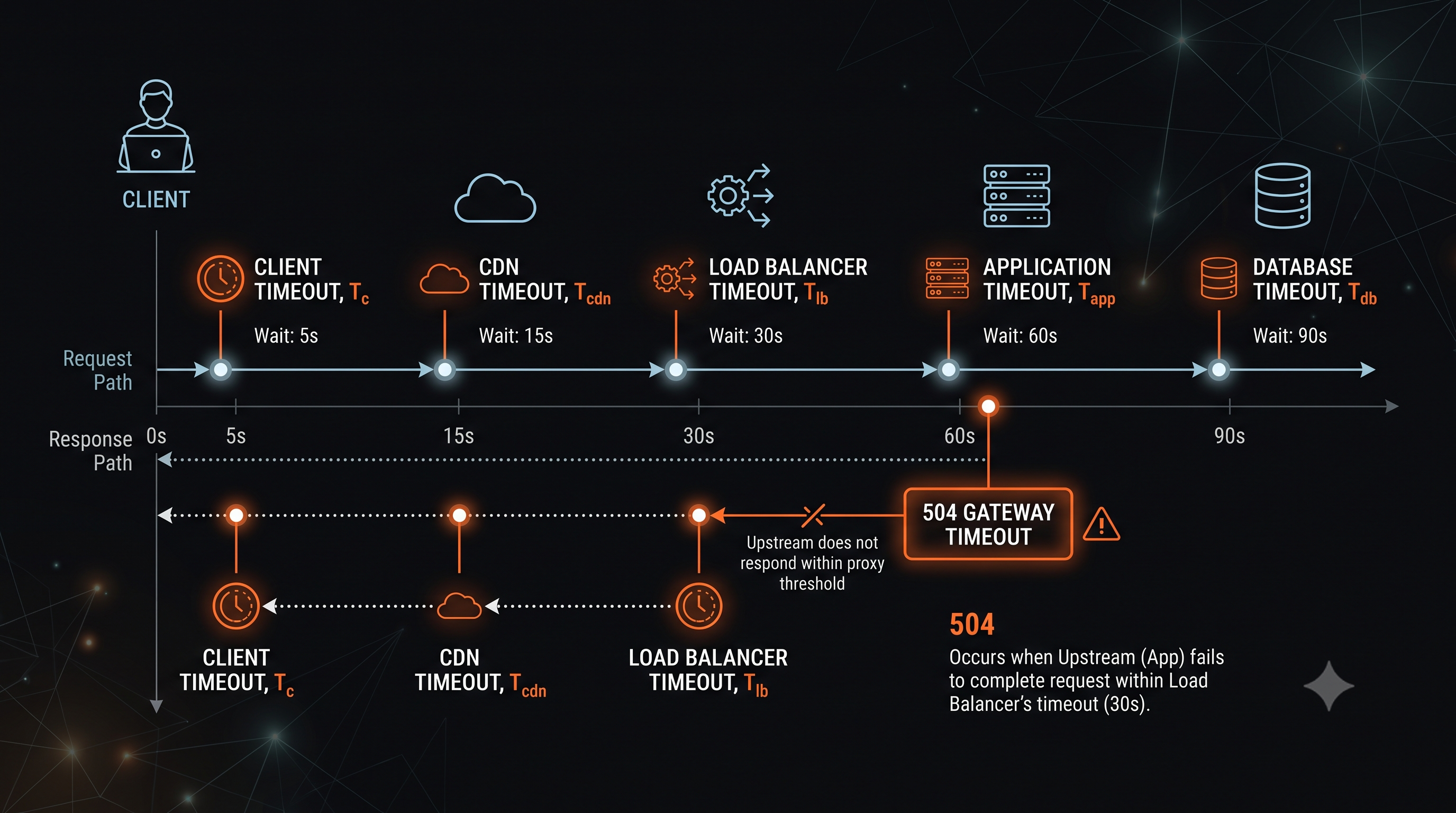

Step 1: Identify the Timeout Layer

Client → [CDN](/en/learning/cdn/what-is-a-cdn/) → [Load Balancer](/en/learning/performance/what-is-load-balancing/) → App Server → Database
         ↑         ↑               ↑            ↑
      timeout   timeout        timeout      slow query

Each layer has its own timeout. The error comes from whichever times out first.

Step 2: Check Application Logs

# Check for slow operations
grep -E "(timeout|slow|duration)" /var/log/app/app.log

# Look for database query times
grep "query.*took.*ms" /var/log/app/database.log

Step 3: Check Proxy/Gateway Logs

Nginx:

tail -f /var/log/nginx/error.log
# Look for: "upstream timed out"
# Look for: "read timed out"

HAProxy:

tail -f /var/log/haproxy.log
# Look for: "sH" or "cH" flags for timeouts

AWS ALB/ELB: Check CloudWatch metrics for TargetResponseTime and HTTPCode_Target_5XX.

Azion:

Real-Time Events → filter by status 504
# Check upstream_response_time to confirm which upstream is timing out
# Cross-reference with Real-Time Metrics → Edge Application → Request Time

Step 4: Check Database Performance

-- PostgreSQL: Find slow queries
SELECT query, calls, total_time, mean_time
FROM pg_stat_statements
ORDER BY mean_time DESC
LIMIT 10;

-- MySQL: Check process list
SHOW FULL PROCESSLIST;

Step 5: Profile Application Performance

# Use APM tools to identify slow transactions
# Node.js: --prof flag
# Python: cProfile
# Java: JProfiler, YourKit

Timeout Configuration Guide

Nginx Timeouts

location /api/ {
    proxy_pass http://backend;

    # Time to establish connection
    proxy_connect_timeout 10s;

    # Time to send request to upstream
    proxy_send_timeout 60s;

    # Time to read response from upstream
    proxy_read_timeout 60s;
}

Application Server Timeouts

Node.js:

server.setTimeout(120000); // 2 minutes
server.keepAliveTimeout = 65000;

Database Timeouts

PostgreSQL:

SET statement_timeout = '60s';

MySQL:

SET SESSION max_execution_time = 60000;

Client Timeouts

The client timeout should be longer than all upstream timeouts combined:

Client timeout > CDN timeout > LB timeout > App timeout

How to Fix 504 Errors

1. Increase Timeouts (When Appropriate)

# Only increase if the operation legitimately takes longer
proxy_read_timeout 120s;

Warning: Don’t mask underlying problems with longer timeouts. Investigate slow operations first.

2. Optimize Slow Operations

Database queries:

-- Add indexes
CREATE INDEX idx_user_email ON users(email);

-- Use query hints
EXPLAIN ANALYZE SELECT ...;

Application code:

// Use [caching](/en/learning/cdn/what-is-http-caching/)
const cached = await cache.get(key);
if (cached) return cached;

// Paginate large results
const results = await Model.findAll({ limit: 100, offset: page * 100 });

3. Implement Async Processing

Move long operations to background jobs:

app.post('/api/process', async (req, res) => {
  // Start job and return immediately
  const job = await queue.add('process', req.body);

  // Return 202 Accepted with job ID
  res.status(202).json({
    jobId: job.id,
    status: 'processing',
    statusUrl: `/api/jobs/${job.id}`
  });
});

app.get('/api/jobs/:id', async (req, res) => {
  const job = await queue.getJob(req.params.id);
  res.json({
    status: job.state,
    result: job.returnvalue
  });
});

4. Use Streaming Responses

For long-running data generation:

app.get('/api/export', (req, res) => {
  res.setHeader('Content-Type', 'text/csv');
  res.setHeader('Transfer-Encoding', 'chunked');

  // Stream data as it's generated
  stream.pipe(res);
});

5. Add Circuit Breakers

Fail fast when upstream is consistently slow:

const breaker = new CircuitBreaker(callUpstream, {
  timeout: 5000,
  errorThresholdPercentage: 50,
  resetTimeout: 30000
});

breaker.fire()
  .catch(() => res.status(503).json({ error: 'Service temporarily unavailable' }));

Timeout Hierarchy Best Practices

Configure timeouts from inside out:

Database: 30s
  ↓
Application: 45s (DB timeout + buffer)
  ↓
Load Balancer: 60s (App timeout + buffer)
  ↓
CDN: 75s (LB timeout + buffer)
  ↓
Client: 90s (CDN timeout + buffer)

Rule of thumb: Each layer should timeout slightly before the layer above it.

Monitoring 504 Errors

Track these metrics:

• 504 rate: Percentage of requests timing out
• Upstream response time: P50, P95, P99 latencies
• Connection timeout rate: Failed connection attempts
• Queue depth: Requests waiting for available workers

Alert thresholds:

• 504 rate > 0.01%: Investigate
• P99 response time > timeout threshold * 0.8: Warning
• Any sudden increase in timeouts: Immediate investigation

Frequently Asked Questions

What’s the difference between 504 and 502? 504 means the upstream didn’t respond in time. 502 means the upstream responded but the response was invalid.

What’s the difference between client timeout and 504? Client timeout is the browser giving up. 504 is the proxy/gateway giving up before the client.

Should I retry on 504? Yes, but only for idempotent methods (GET, PUT, DELETE). Use exponential backoff.

How do I set timeouts in Kubernetes? Use timeoutSeconds in probes and configure readinessProbe appropriately.

What’s a reasonable timeout value? Depends on your workload. API calls: 30-60s. Database queries: 5-30s. File uploads: longer.

Why do I see 504 only under load? Resource exhaustion causes slow responses. Check CPU, memory, and connection pool limits.
